OBD2 Scanner Diagnostics Dongle IOS ANDROID

🔷All Systems Diagnose Tool: AD20PRO can quickly diagnose all system, read and clear error codes such as Engine, Transmission, ABS, Airbag, TPMS, etc.

🔷Full OBDII Functions: AD20PRO Support read/clear codes, read live data stream, read freeze frame, I/M readiness, On-board monitor test, read vehicle information and component test.

🔷Battery Test + Maintenance Light Reset: Allows you to perform a reset to recalculate the engine oil life after an oil change. Battery test can timely feedback the real-time data of your car battery.

🔷Auto Vin + Auto Scan: When you click "Auto VIN Scan", AD20PRO will automatically recognize your car information and auto scan car.

🔷Driving Records + Driving Analysis: Display route maps for each trip and analyze vehicle performance data.

🔷Colorful HUD Function: The HUD function projects the vehicle's current speed, instrument information and navigation information onto the front windshield to reduce driving risks and improve driving safety.

🔷13 Kinds of Languages: English, German, French, Italian, Spanish, Russian, Arabic, Polish, Portuguese, Japanese, Korean, Turkish, Traditional Chinese.

🔷Compatible With Android + iOS + Bluetooth 5.0: Compatible with Android and iOS, enhanced Bluetooth 5.0 transmits vehicle data to your mobile phone or tablet at a distance of nearly 10 meters.

XTOOL Advancer AD20PRO Wireless OBD2 Scanner Diagnostic Tool Fits for iPhone & Android, Enhanced Car Code Reader with All System Scan, Oil Reset, Turn Off CEL, Performance Test, Voltage Test

Reads enhanced diagnostic codes, quick access and scan All available systems of your car, include engine, transmission, ABS, SRS, SAS, TPMS, EPB, Chassis, Body, Electrical equipment system...

🔷For Engine Systems Diagnosis: Perform the regular engine checks to pull fault codes will avoid engine failure or replace the engine, thus withstanding huge amounts of repair cost. Any fault that illuminates the check engine light (CEL light).

🔷For Transmission Systems Diagnosis: Read fault codes in transmission system and those that may illuminate the transmission warning light, clear the DTC after repairing.

🔷For ABS Systems Diagnosis: Read fault codes in ABS system and those that may illuminate the ABS warning light, clear the DTC after repairing.

🔷For SRS(Airbag) Systems Diagnosis: Read fault codes in SRS (airbag) system and those that may illuminate the SRS(Airbag) warning light, clear the DTC after repairing.

Note: Currently only capable of reading/clearing DTC. The function is not supported by all cars, please consult the seller before purchasing.

1. Read codes

2. Clear codes

3. Read Live Data

4. Vehicle Information

5. View Freeze Frame

6. I/M Readiness

7. O2 Monitor Test

8. On-Board Monitor

9. Component Test

10. DTC Lookup

Note: The function is not applicable to all car models, please consult the seller before purchasing.

🥇DTC Repair Guide

Bluetooth XTOOL AD20PRO code reader can lookup the OBD2 fault code's definition directly, including the fault description, the cause of the fault, maintenance suggestions and background knowledge, saves your searching time and help you better understand the fault code definition.

AD20PRO supports battery test, check the battery voltage, generator power generation and starting voltage data and timely feedback the real-time data of your car battery. Test Date Including: Before the vehicle starts, during the start, after the start.

🥇Smart Dash HUD Display

The HUD function projects the vehicle's current speed, instrument information, navigation information, ADAS information, etc. onto the front windshield, reducing the driver's eye movement and effectively avoiding blind driving caused by the driver often looking down at the instrument or car navigation while driving. Reduce driving risk and improve driving safety.

🥇Performance Testing

Test your car through 100 km acceleration time, speed, engine load, coolant temperature and more to see how it behaves so you can detect problems with its drivetrain, brakes or other systems.

🥇Vehicle Management

Bind multiple devices with one click and switch diagnosis at any time, saving time and being efficient.

Europe Cars: for DEMO, for VW, for MINI, for LANDROVER, for SEAT, for FERRARI, for FORD, for OPEL, for ALFA, for ROMEO, for VOLVO, for ABARTH, for SMART, for BMW, for FIAT, for LANCIA, for RENAULT, for ASTONMARTIN, for GAZ, for MASERATI, for MEREDES, for UAZ, for SKODA, for CITROEN, for DACIA, for AUDI, for JAGUAR, for PORSCHE, for PEUGEOT and more.

America Cars: for DEMO, for GM, for FORD,for CADILLAC,for CHEVROLET, for GMC, for HUMMER, for JEEP, for SATURN,for PONTIAC, for LINCOLN, for DODGE, for CHRYSLER, for BUICK and more.

Asia Cars: for Demo, for TOYOTA -LEXUS, for ISUZU, for MAZDA, for KIA, for INFINITI, for ACURA, for NISSAN, for RENAILTSAM, for HYUNDAICY, for HYUNDAI, for HONDA, for SUBARU, for SUZUKI, for MITSUBISHI, for SSANGYONG and more.

Australia Cars: For Demo, for Ford and more.

SUPPORT OBD2 PROTOCOLS:

1. SAEJ1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2 (5 baud init,10.4Kbaud)

4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP (fast init,10.4 Kbaud)

6. ISO15765-4 CAN (11bit lD,500 Kbaud)

7. ISO15765-4 CAN (29bit ID,500 Kbaud)

8. ISO15765-4 CAN (11bit ID,250 Kbaud)

9. ISO15765-4 CAN (29bit lD,250 Kbaud)

Note: Before Purchasing, Send Specific Models and Functions to ask the seller whether they support it.

🥇AD20PRO QUICK SETUP GUIDE

XTOOL AD20PRO Compatible With iOS & Android Devices

1. Download “Advancer AD20” App (Same APP as AD20 Pro)

2.Activate the device

3. Plug AD20PRO into the OBD Ⅱ Port

4. Start the Engine

5. Confirm the Red indicator is On

6. Establish Bluetooth Connection(Android 4.4 or above 8 iOS 11 or above)

7. Connect Successfully with the Bluelndicator Lights On

Note: AD20PRO is suitable for mobile phones and tablets (computers are not supported)

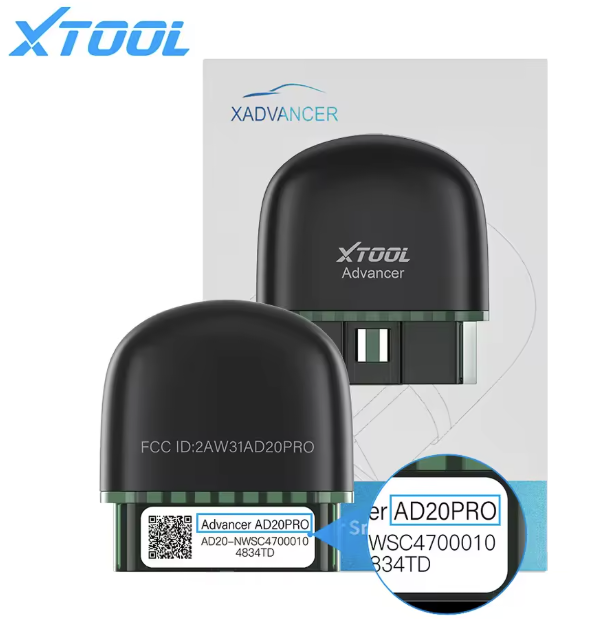

Package List:

1 X PC AD20Pro

1 X PC Paper Box
